VGS Series

VGS2740, VGS2790 & VGS3721 for Hemming, Covering & Trimming operations respectively

VGS2740

3 Needle 5 Thread Cylinder Bed Interlock Stitch Machine for Hemming, with Top Feeder

VGS2790

3 Needle 5 Thread Cylinder Bed Interlock Stitch Machine for Covering, with Top Feeder

VGS3721

3 Needle 5 Thread Cylinder Bed Interlock Stitch Machine with Top Feeder, Left Hand Fabric Trimmer

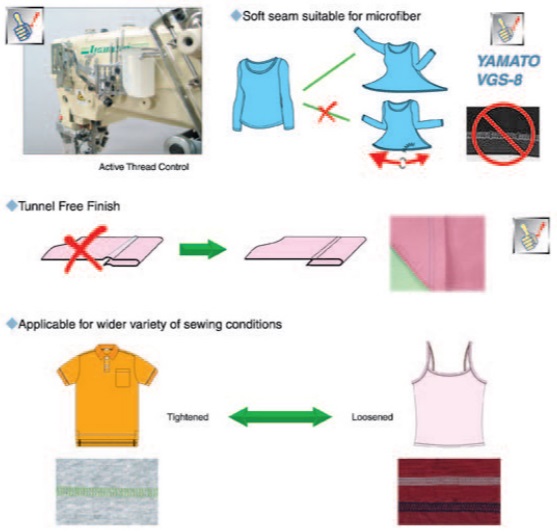

Features

  • Top-feed Mechanism :Brings top ply of fabric closer to needle drop point at any feed amount
  • Active thread control :Unlike the conventional way of thread control, which mainly uses tension on each thread, Yamato active thread control takes in and/or draws back threads when it is required,and stitch well-balanced seams with minimum necessary tension for thread regulation.

  • Stable Finish :Top feed Dog eliminates sewing slippage, twisting and distortion of any kinds of fabric for beautiful finish
  • Improves working environment and easy maintenance
  • Tunnel Free Finish, Comfortable to wear
  • Easier handling :Position of needle bar driving link is designed higher by 17mm than our conventional machine to keep more space at the left side of needle drop point.
  • Soft seam suitable for microfiber
  • Micro Adjuster

Technical Specifications

Model VGS Series
No. of needles 3(2)
No. of threads 5(4,3)
Needle gauge

4.0

4.8

5.6

6.4

Stitch length 1.4-3.6
Presser foot lifter 5.5-7
Needle bar stroke 31(33)
Speed 5,500
