VE-8F Series

Small Cylinder Bed Interlock Stitch Machine

Features

Circumference of cylinder is 180mm. Both main and differential feed dogs are installed in the small cylinder. Additionally,UT device is equipped
Short distance from needle drop point to front of cylinder. Therefore, even if sewing cuffs of sweat shirts or children's cloths, it is easy for the operator to handle fabric.
New needle guard driving separately from looper holder
Adjustable vertical position and angke
New feed driving mechanism. Stitch length can be quickly and easily adjusted by lever.Fine adjustable stitch length by adjusting knob.

Active thread control support wide variety of seams from soft and elastic seams to tight seams.

Technical Specifications

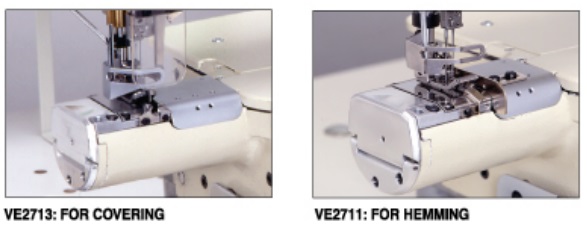

Model	VE2711(P)-8F	VE2713(P)-8F
No. of needles	3(2)	3(2)
No. of threads	5(4)	5(4)
Needle gauge	4.8 5.6 6.4	5.6
Stitch length	1.4-4.2	1.4-4.2
Presser foot lifter	7	5
Needle bar stroke	33(31)	33(31)
Speed	4,500	4,500
