Shape tacking machine LK-1940 Series

Computer-controlled, Shape-tacking Machine with Full-rotary 3-fold Capacity Hook [Sewing area: 60mm (L) X 100mm (W)]

LK-1941ZA -For extra heavy-weight materials with heat cutter

LK-1942HA-For heavy-weight materials with intermediate presser

LK-1942GA-For extra heavy-weight materials with intermediate presser

LK-1942ZA/5050-For seatbelts with heat cutter





Features

  • The sewing pattern can be changed with ease.With its new electronic feed system, the operator can select and use the sewing pattern entered. When changing a sewing pattern, the conventional mechanical bartacking machine requires the replacement of a feed cam
  • Higher productivity :The machine demonstrates a high-speed sewing capability of up to 2,200 sti/min for dramatically increased productivity
  • The machine offers improved seam quality and sewing capabilities when sewing heavy-weight or extra heavy-weight materials.
  • Higher lift of the feeding frame (max: 25mm) enables easy placement of a material on the machine
  • LK-1941 A newly developed heat cutter ensures reliable and speedy trimming of thick thread
  • LK-1942GA The intermediate presser securely clamps the material
  • The direct-drive system that directly connects a compact AC servomotor to the machine head achieves outstanding responsiveness and increased stopping accuracy.
  • The hand pulley is installed on this side of the machine head. This allows the operator to visually check the needle entry and adjust hook timing with ease

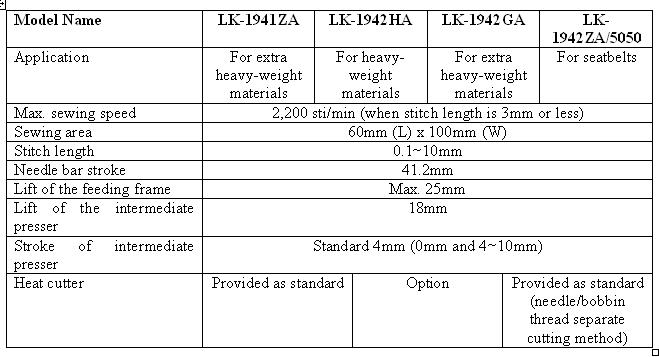

Technical Specifications

Warranty

One year from the date of invoice against any manufacturing defects
