"Performs serging of a long material even when the work space is small "

IIGM
Purchase Protection Plan

ASN-690 Series

It is a Super-high-speed Automatic Serging machine developed to achieve a simple structure and ease of use

Features

  • Super-high-speed serging machine developed to achieve a simple structure and ease of use

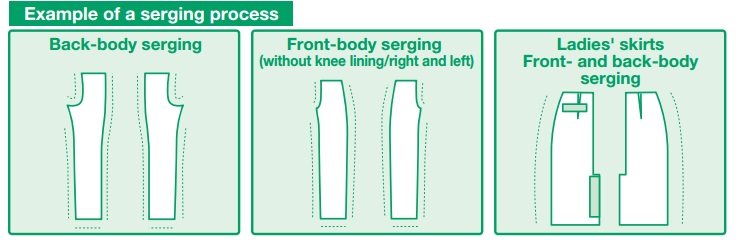

  • The machine is applicable to the over casting of material fabrics cut into various jeans and skirt shapes.

  • The machine is equipped with the super-high-speed overlock machine head MO-6904S
  • the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
  • Flexible cloth guide :the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
  • Micro-lifter device :The machine is provided as standard with a micro-lifter device which adjusts the lifting amount of the presser foot to the material thickness to achieve improved seam quality, while preventing puckering and material damage

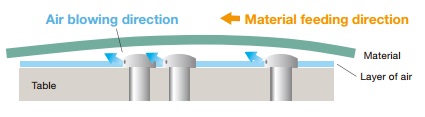

  • Air-blow table :issues a jet of air from its air nozzles at three locations to contribute to smoother handling of the material

  • Easy-to-use stacker switch: the stacker can also be actuated by operating the large easy-to-press manual stacker switch



Technical Specifications

Model Name ASN-690 Series
Machine head MO-6904S (Super-high-speed, 1-needle overlock machine)
Application Serging of skirts, pants, jeans, etc.
Max. sewing speed 8,000 sti/min
Stitch length 0.8 - 4mm
Overedging width (mm) 4.0, 4.8, 5.6
Differential feed ratio For gathering 1:2 (max.1:4), For stretching 1:0.7 (max. 1:0.6)
Thread trimming device Exclusive pneumatic side cutter
Lubrication Automatic

Warranty

One year from the date of invoice against any manufacturing defects
