"Suitable for pressing shirt collar and cuff "

Buy Now

Download Brochure

IIGM

Purchase Protection Plan

Collar & Cuff Press Machine NS-8243-MP-L

Automatic Collar and Cuff Press (Man / Lady)

Features

Suitable for pressing shirt collar and cuff.
Apply PLC and human-machine touch screen for operation.
The upper mould adopts multi heater groups, temperature of different areas could be controlled by independent thermostats for better temperature control.
Flexible operation, swift action and high efficiency .
The lower mould with the function of vacuum (need to purchase a vacuum pump additionally), which is helpful for garment fixing, cooling down and fine shaping effect.

Technical Specifications

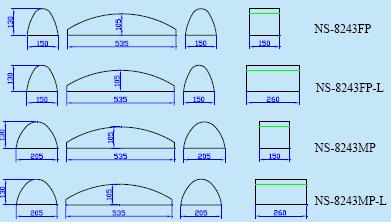

Models	NS-8243FP, NS-8243FP-L, NS-8243MP, NS-8243MP-L
Power Supply	3PH/380V/50Hz
Total Power (kW)	3
Compressed air pressure (kgf/cm²)	5
Compressed air consumption (L/min)	150
Designed Temperature (ºC)	200
Machine Size (mm)	1420x1270x1520
