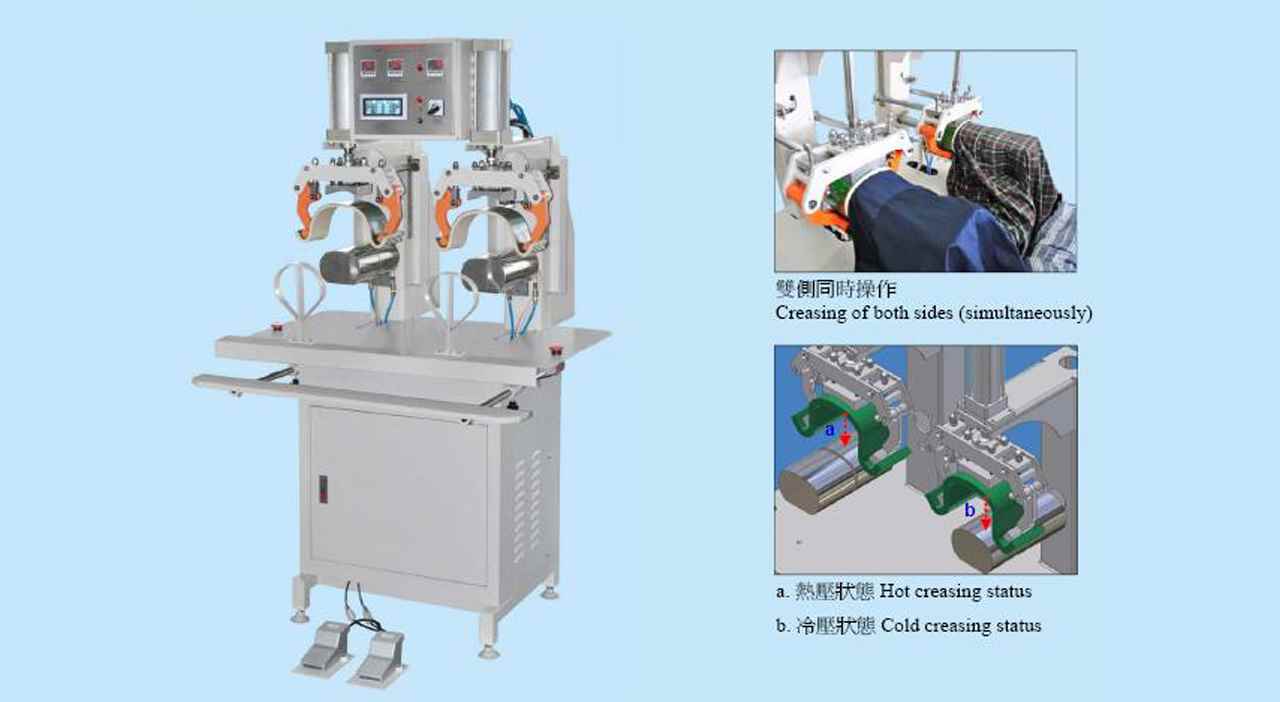

Collar Creasing Machine NS-8249-D

Double Hot and Cool Head Collar Creasing Machine

Features

Crease collar to be round and smooth so as to increase pressing department efficiency and enhance packing quality
Can press 2/3 of one piece of collar and makes the collar be more beautiful
The left and right moulds could be operated by one person at the same time, which saves labor and improves work efficiency
greatly
Cold head and hot head automatic displacement design for hot pressing and immediately cooling down & shaping so as to ensure a perfect creasing result and double the work efficiency
PLC and user friendly touch screen control
Digital thermostats for more accurate temperature control

Technical Specifications

Model	NS-8249-D
Power Supply	1PH/220V/50Hz
Heater (kW)	2
Cooling Device (kW)	0.4
Compressed air pressure (kgf/cm²)	5
Compressed air consumption (L/min)	100
Machine size (mm)	980x800x1700
