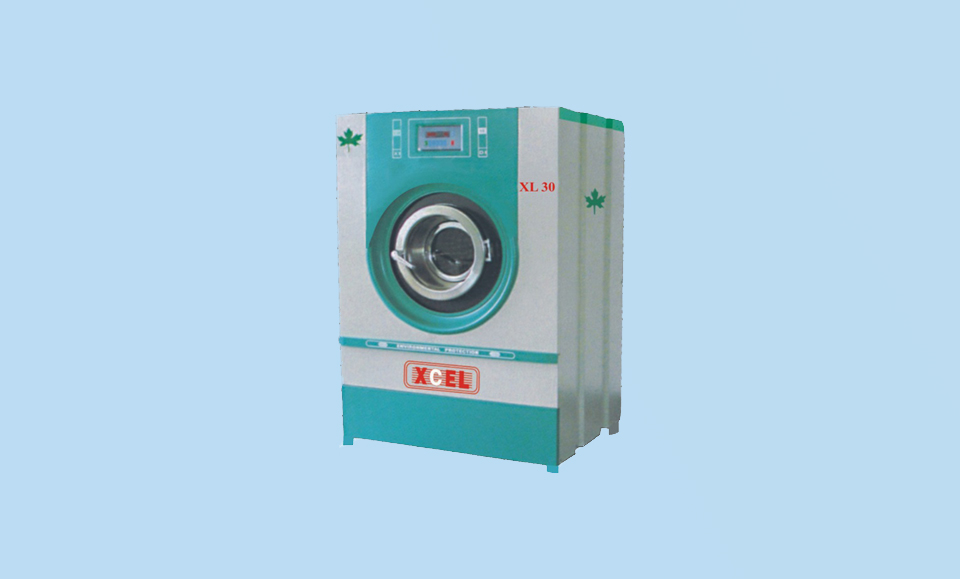

XL 30, Washer Extractor Dryer

"Space saving, High efficiency, Water less floor, Steam / electric heated "

IIGM
Purchase Protection Plan

XL 08, 15, 30 High Spin Washer Extractor Dryer

XCEL with its continuous innovation, strong R&D introduces one of its kind three in one washer / extractor / dryer for all types of laundry.

Features:

  • High operational fluency
  • Long service life
  • Easy operations
  • Mainly stainless steel construction.
  • CNC embossed perforations for better fluid circulation.
  • Auto timed, Auto temperature Sensor, Digital temperature Indicator.
  • Built in VFD provides adjustable drum speed for various types of washing, completely safe for delicate & sequential garments
  • Instant drain & filling thru manual valves. Auto operation of water, steam & drain are available as optional.
  • Soap dozer.
  • Thermally insulated with blanket wool to prevent heat loss maintain uniform temperature.
  • Moisture evacuation is through balanced centrifugal high suction blower directly mounted on motor for optimum efficiency & silent operation.
  • Option of manual operated machine or automatic through microprocessor

Technical Specifications:

Model XL 08 XL 15 XL 30
Capacity kg 08 15 30
Basket size mm / volume lt 750x350 / 155 900x450 / 286 1100x600 / 570
Power reqd drive motor hp 2.0 3.0 5.0
Power reqd suction motor hp 1.0 1.0 2.0
Door opening dia mm 400 530 530
Water-connection inches 0.5 1.0 1.0
Air outlet inches 4.0 6.0 6.0
Drain inches 1.0 2.0 3.0
Heating electric 6 kw 9 kw 12 kw
Dimensions mm 990x1245x1525 1150x1345x1750 1350x1500x1950
Weight kg 525 710 970
