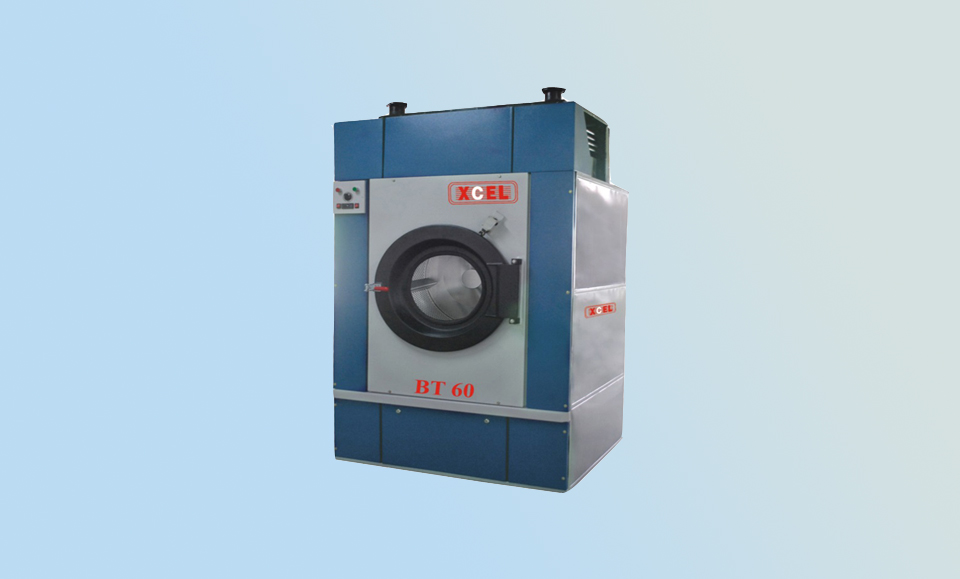

BT 60, Drying Tumbler-Standard Series

BT 15, 30, 60, 120 Drying Tumber Standard Series

Features:

• Excellent functionality

• Negligible maintenance

• Robust construction

Drying Tumber Standard

• Construction: Heavy fabricated outer body is metallic painted with clear coating for longer life, large sized die pressed powder coated door for easy loading. The machines are epoxy coated inside for rust prevention.

• Drying Chamber: Thermally insulated stainless steel basket, double walled prevent heat loss & maintain uniform temp.

• Drive: Balanced cast iron pulleys & flexible plummer block housing with double ball bearing to sustain all loads.

• Suction: Moisture evacuation is through balanced centrifugal high suction blower directly mounted on motorfor silent operation.

• Lint screen: Sliding lint screen is provided in the front panel for easier operation.

• Steam / Electric Radiator: Copper coils with aluminum fins for steam heated and fin type elements for electric heated are provided with sliding mesh to prevent duston radiator.

• Diesel/PNG Operated: The most economical & automatic operating system. Diesel / PNG burner is fitted in a heat exchanger made of numerous seamless pipes for quick air heating with sliding mesh.

Technical Specifications:
