BT 500200 H-TB

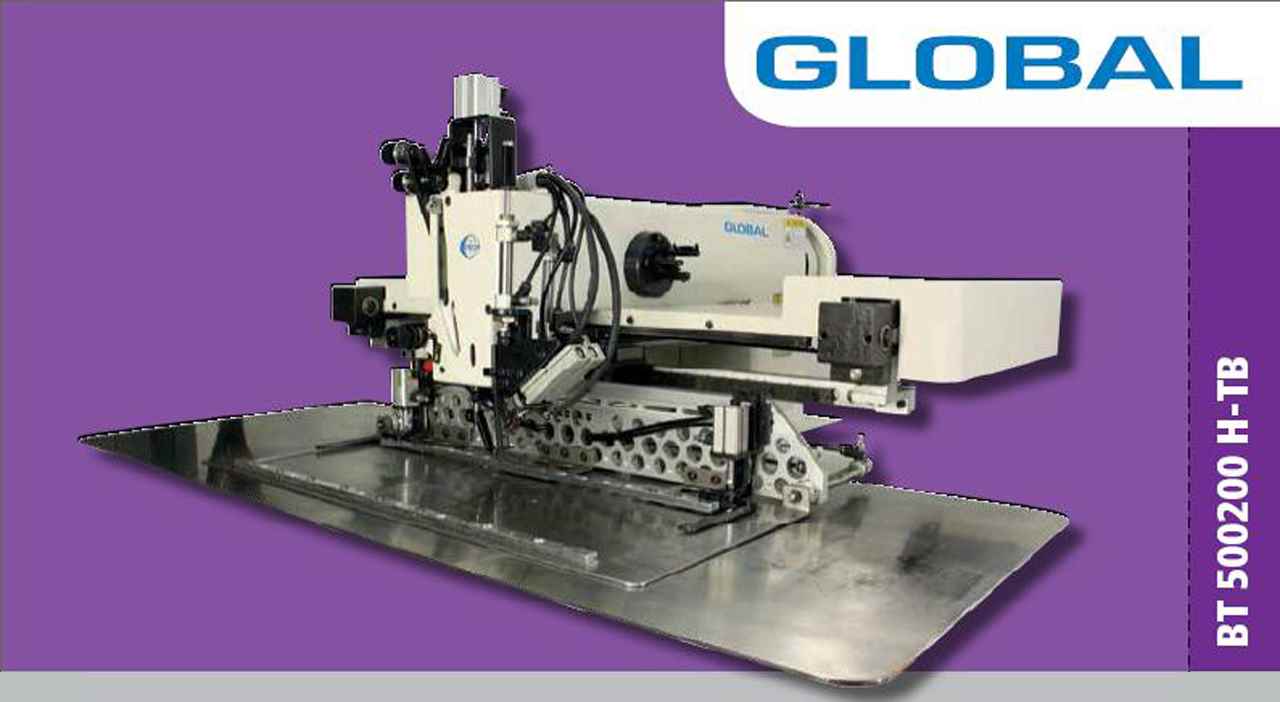

Electronic Heavy Duty Pattern Sewing Machine

Features

  • Extra heavy duty programmable pattern sewer with large shuttle hook and bobbin capacity.
  • This machine is also equipped with automatic thread burners to trim upper and lower thread.
  • An air cooling device is available as an option.
  • This machine is suitable to sew extra heavy materials, such as safety belts, flight cases, cargo straps, luggage and shoe-soles.
  • Pattern input by USB.
  • Max sewing size 500x200 mm.
  • Complete with table top, stand and motor.

Technical Specifications

MODEL BT 500200 H-TB
MACHINE SPEED max 800 spm
FEEDING SYSTEM By pulse motor ( X- Y )
HOOK TYPE Large shuttle hook
STITCH LENGTH max 10 mm
PRESSER FOOT LIFT max 18 mm
CLAMP LIFT Up to 20 mm (pneumatic)
NEEDLE TYPE DY X 3
SEWING RANGE 500 x 200 mm
POWER SOURCE 240 v- 1 phase 50-60 Hz
direct drive AC servo motor
