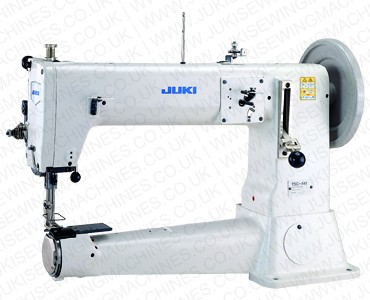

TSH-411, TSN-421, TSC-441, TSU-471

1-needle, Semi-long Cylinder Bed, Lockstitch Machine with a Large Shuttle-hook for Extra-heavy-weight Materials
TSH-411 (Bottom feed)
TSN-421 (Needle feed)
TSU-471 (Top & bottom feed)
TSC-441 (unison feed)



TSH-411 (Bottom feed) - can  be modified to sew sharp curves by replacing the presser foot with a roller presser.

TSN-421 (Needle feed) - With its bottom feed and feed-dog    feed,    the machine  sews  articles entirely free from uneven material feed.

TSU-471 (Top & bottom feed) - The top feed amount is adjustable within the range of ±30% of the bottom feed.

TSC-441 (unison feed) - A  top  &  bottom  feed mechanism  has  been added to the machine's needle feed system.  This ensures a higher feed efficiency    and    the production   of   higher-quality  seams  without uneven material feed.



Features

  • The lifting range of the presser foot is as high as 20 mm for smooth placement/removal of extra-heavy-weight materials.
  • Frequency of bobbin thread replacement is reduced.
  • The machine comes with a large shuttle-hook.
  • The bobbin winder is built into the front portion of the machine arm for easy manipulation.





Technical Specifications

Model name TSH-411 TSN-421 TSU-471 TSC-441
Feed system Bottom feed Needle feed Top & bottom feed Unison feed
Max. sewing speed 800 rpm
Max. stitch length 11mm (normal/reverse feed)
Needle bar stroke 56mm
Lift of the presser foot By pedal:20 mm / By hand: 12mm
Thread take-up Cam-type
Hook Large shuttle-hook
Lubrication By hand
Weight of the machine head 56 kg
