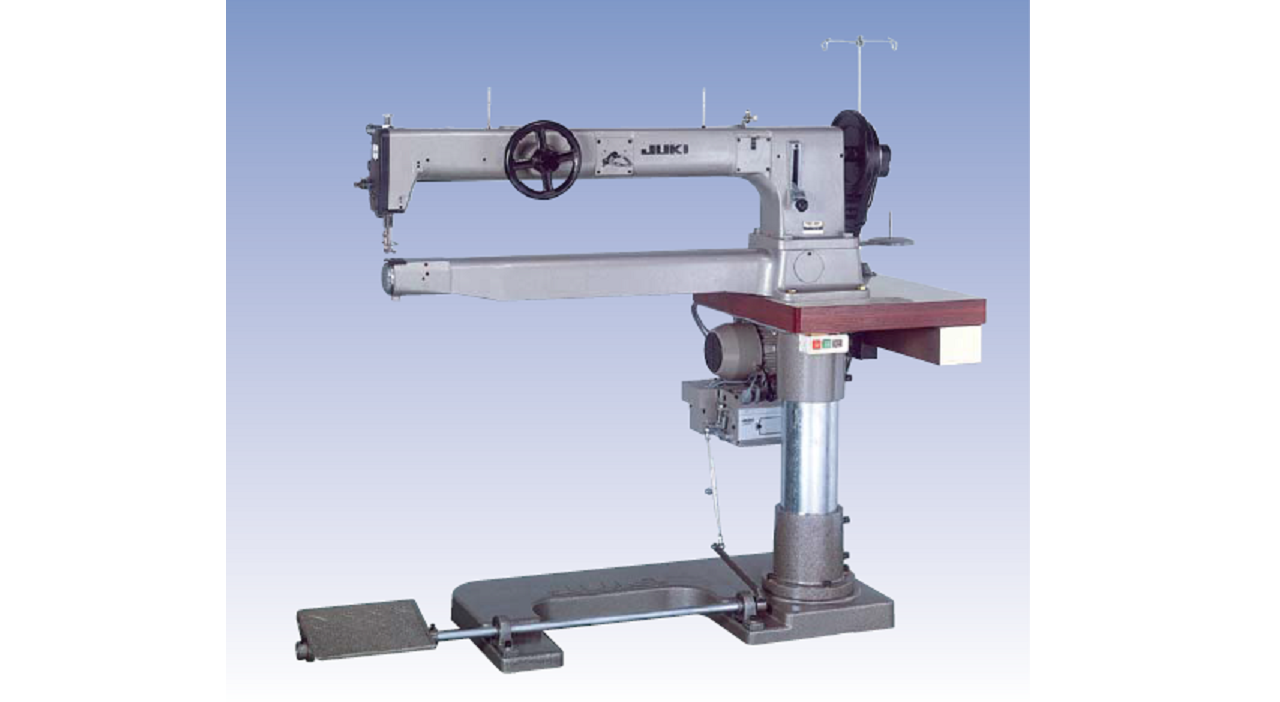

TSC-461U

Super-long Cylinder-bed, 1-needle, Lockstitch Machine with Large Shuttle-hook for Extra Heavy Materials


Features

  • The machine is capable of powerfully feeding the materials which cannot be smoothly fed by conventional machines
  • It is equipped with a free space under the arm as wide as 950mm, which means that the machine is capable of sewing materials, long sized materials and tubular sewn products with ease.
  • The lifting amount of the presser foot is sufficient to sew extra heavy materials.
  • The machine incorporates a build-in type bobbin winder.
  • The machine is also provided with a large shuttle hook and large bobbin, which are used for sewing extra heavy materials.
  • The amount of thread wound around a bobbin is dramatically increased.

Applications

Carrying bags, transportation equipment, sporting goods.

Technical Specifications

Model name TSC-461U
Max. sewing speed 650spm
Max. stitch length 11mm (normal/reverse feed)
Needle bar stroke 56mm
Lift of the presser foot By hand: 12mm, By pedal: 20mm
Thread take-up Cam type thread take-up
Lubrication By an oiler
Bobbin winder Built on the machine arm
Hook Large capacity shuttle hook
Distance from needle to machine arm 950mm
