DNU-1541 Series

1-needle, Unison-feed, Lockstitch Machine with Double-capacity Hook

DNU-1541S (with safety mechanism)



DNU-1541-7 (with automatic thread trimmer)

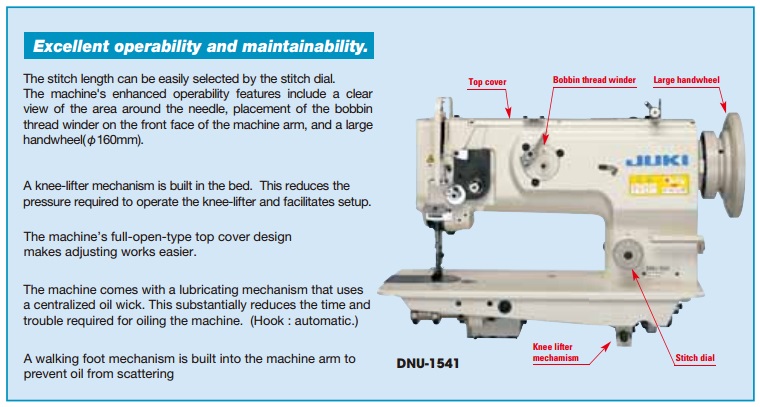

Features

  • Excellent sewing capabilities and feed performance.
  • With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness

  • The machine delivers increased productivity at sewing speeds as high as 2,500sti/min
  • When the thread is caught in the hook or any other sewing trouble occurs, the safety mechanism will automatically operate to prevent the machine from being damaged



 DNU-1541-7(with automatic thread trimmer)

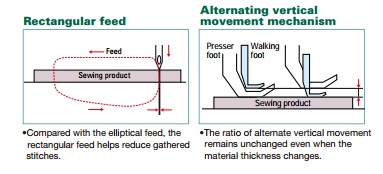

  • The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head
  • The area around the needle entry is designed to be easily observed
  • Thread trimming without fail
  • With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated

Technical Specifications

Model Name  DNU-1541 DNU-1541S DNU-1541-7
Max. sewing speed  2000sti/min   3000sti/min
Stitch Length  9mm (forward/backward)
Needle bar stroke  36mm
Lift of the presser foot  By hand: 9mm, By knee: 16mm
Thread take-up  Slide Type
Alternating vertical movement  2.5~6.5mm 1~6.5mm
Hook  Horizontal-axis full-rotary double-capacity hook
Needle  135 x 17 (Nm160) Nm125~Nm180
Thread  #30~#5
Pitch changing method By dial
Lubrication  Centralized oil wick lubrication (hook:automatic)
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to machine arm  264mm
Weight of the machine head 36.5kg 42.5kg
Bed Size 477mmx178mm
Motor output 750W
Power requirement -

Single-phase 100~120V,200~240V

3-phase 200~240V

Automatic reverse feed function option  Provided as standard
