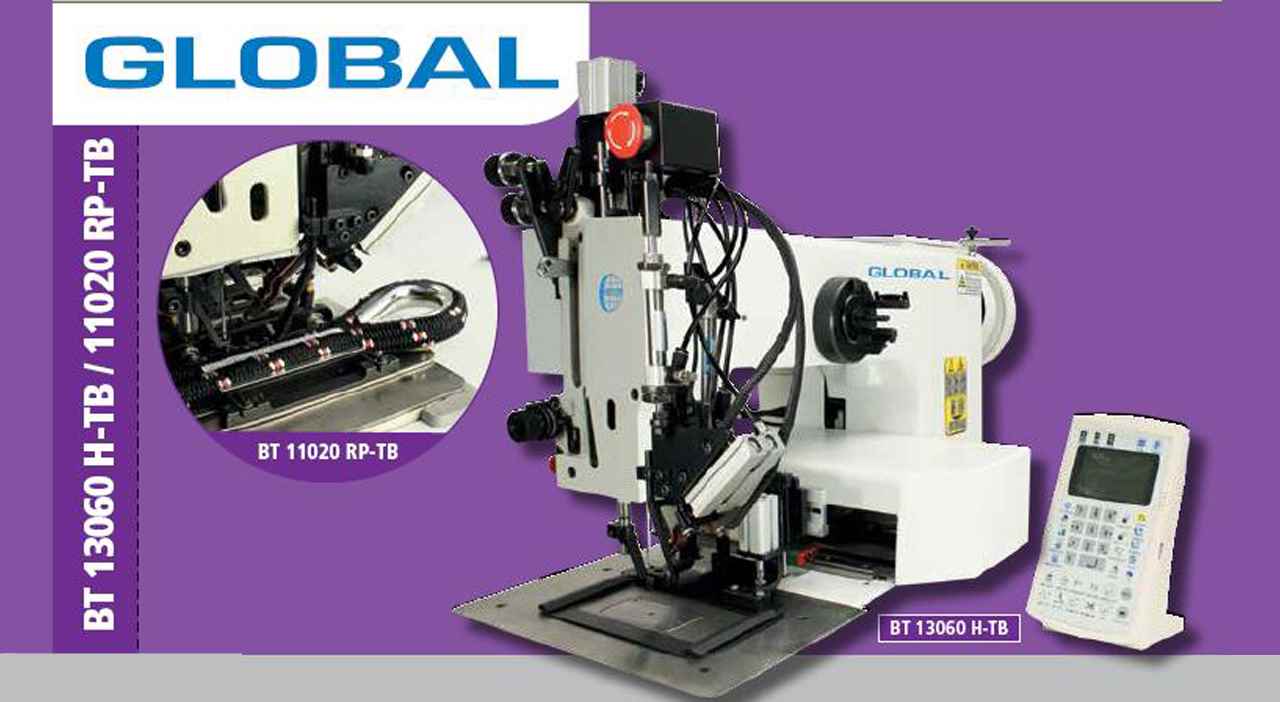

BT 13060 H-TB & BT 11020 RP-TB
Global BT 13060 H-TB - Pattern Sewer
Global BT 11020 RP-TB - Rope Sewing Machine
Series with Features
Global BT 13060 H-TB - Pattern Sewer
- Extra heavy duty programmable pattern sewer with large shuttle hook and bobbin capacity.
- This machine is equipped with automatic thread burners to trim upper and lower thread.
- An air cooling device is available as an option.
- This machine is suitable to sew extra heavy materials, such as safety belts, flight cases, cargo straps and luggage.
- Pattern input by USB.
- The machine can easily be converted into a rope sewing machine (Global BT 11020 RP-TB) by changing the clamps (optional).
- Complete with table top, stand and motor.
Global BT 11020 RP-TB - Rope Sewing Machine
- Extra heavy duty computerized rope sewing machine with large shuttle hook and bobbin capacity, to form reinforced stitched loops (sewn eyes).
- This machine is equipped with automatic thread burners to trim upper and lower thread.
- An air cooling device is available as an option.
- This machine is suitable for bar tacking climbing ropes, safety ropes, sterling ropes, cord, yacht ropes, synthetic fiber mooring rope, etc.
- The machine can easily be converted into a pattern sewer (Global BT 13060 H-TB) by changing the clamps (optional).
Technical Specifications
Model |
BT 13060 H-TB & BT 11020 RP-TB |
MACHINE SPEED |
BT 13060 H-TB: max 800 spm
BT 11020 RP-TB: max 200-400 spm
(speed depends on rope diameter) |
FEEDING SYSTEM |
By pulse motor (X-Y) |
PRESSER FOOT LIFT |
BT 13060 H-TB: max 18 mm BT 11020 RP-TB: n.a. |
CLAMP LIFT |
BT 13060 H-TB: max 20 mm BT 11020 RP-TB: n.a. |
NEEDLE TYPE |
DYx3 |
SEWING RANGE |
BT 13060 H-TB: 130 x 60 mm
BT 11020 RP-TB: 110 x 20 mm |
MAXIMUM ROPE DIAMETER |
12 mm |
