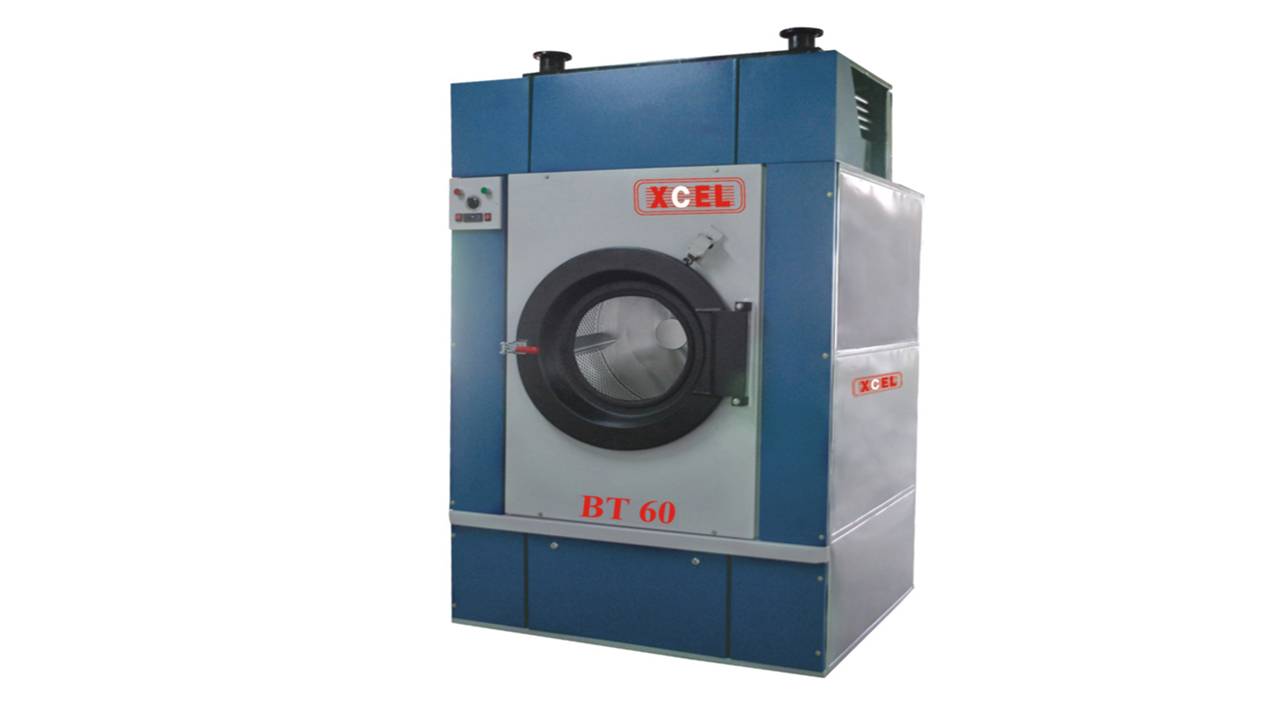

BT 60, Drying Tumbler, Premium Series

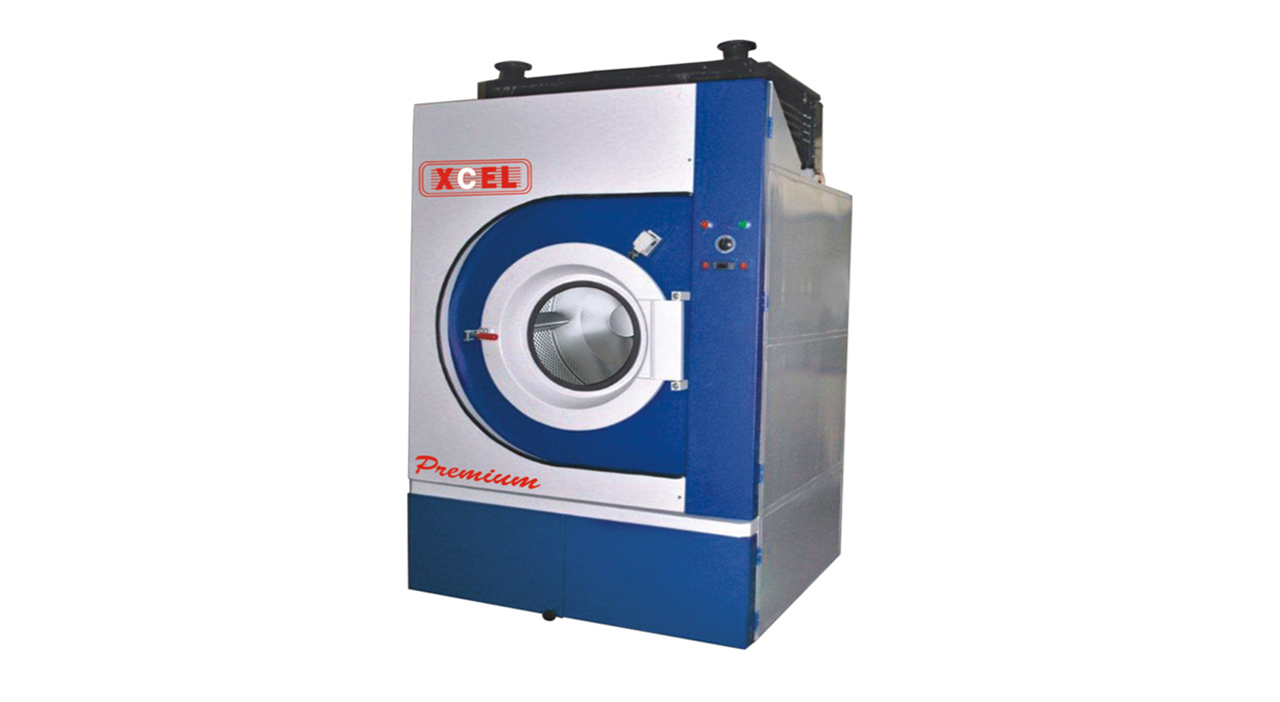

BT 15, 30, 60, 120 Industrial Drying Tumbler - Premium Series

XCEL introduces the most advanced version of tumbler dryers based on Italian Technology, perfect solution for absolutely dry garments in a controlled environment, come winter or monsoon.

Features:

  • Robust construction
  • Long operational life

  • Easy to operate

  • Powder coated panels

  • Italic design

  • Steam / Electric / Diesel / PNG operated

  • Automatic controls

  • Digital Auto temperature Sensor & indicator, auto timed, auto forward reverse.

  • Finest brands of electricals & H-class motors for maintenance free operation.

  • Closed grain cast iron pulleys.

  • Self aligned bearings to sustain radial & axial loads.

  • Blanket wool insulation.

  • Aluminum casted blower prevents accumulation of lint & maintain uniform suction.

  • Fully epoxy painted inside for rust free operation.

  • Most modern design.

Technical Specifications:

Model BT 15 BT 30 BT 60 BT 120
Capacity Kg 15 30 60 120
Basket size mm 850x500 1000x850 1250x970 1600x1200
Volume lt 284 667 1190 2411
Power required drive motor 1.0 hp 1.0 hp 2.0 hp 3.0 hp
Power required suction motor 1.0 hp 1.0 hp 2.0 hp 2 x 2.0 hp
Air delivery ft3xhr 1500 1500 3000 6000
Air outlet dia mm 225 225 300 300
Door opening dia mm 580 580 650 1030
Heating steam consumption 20 kg/hr 30 kg/hr 60 kg/hr 120 kg/hr
Heating electric 09 kw 12 kw 24 kw NA
Heating diesel fired 1.25 lt/hr 1.5 lt/hr 3.0 lt/hr 5.5 lt/hr
Dimensions mm 950x1120x1750 1150x1500x1850 1350x1780x2300 1750x2100x2700
Net wt kg 340 580 940 2010
