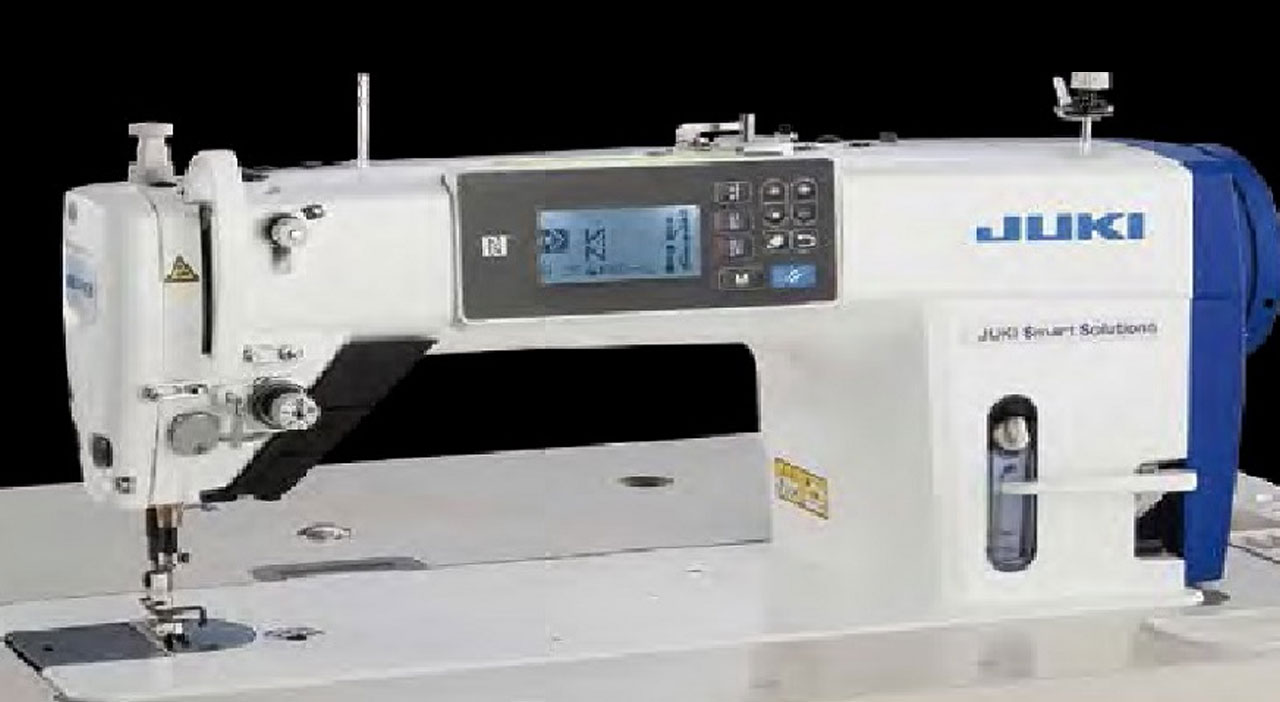

DDL-9000C Series

Direct Drive, High Speed, Sewing System with Automatic Thread Trimmer ( Digital Type)

Features

  • World first computer-controlled vertically and horizontally-driven feed mechanism
  • Remaining thread at the end of sewing reduced to 3 mm
  • A both-blade driven rotary knife system is adopted
  • Sewing machine management utilizing ""IoT" (Internet of Things)
  • USB port is provided as standard

Technical Specifications

Model Name DDL-9000C-SMS DDL-9000C-FMS
Type Digital Type Full Digital Type
Application Medium-weight
Lubrication Semi-dry
Max. sewing speed 5,000 sti/min*
Max. stitch length 5mm*
Needle bar stroke 30.7mm
Feed dog height 0.8mm
Lift of the presser foot

By hand: 5.5mm, By knee: 15mm

Auto: First step 5.0mm (0.1~8.5mm)*²

Second step 8.5mm (8.5mm~13.5mm)*²

Size of bed 517x178mm (Distance from needle to machine arm: 303mm)
Bobbin thread winder Built-in the machine head
Machine head drive

Compact AC servomotor (450W)

that is directly connected to the main shaft (direct-drive system)

Automatic reverse

feed function

Provided as standard
Power consumption 520VA
Net weight Machine head: 40kg / 40.5kg(with AK-154), Control box:6kg



Warranty

One year from the date of invoice against any manufacturing defects.
