"Has consistent seam quality & sharp-curve sewing function "

Buy Now

Download Brochure

IIGM

Purchase Protection Plan

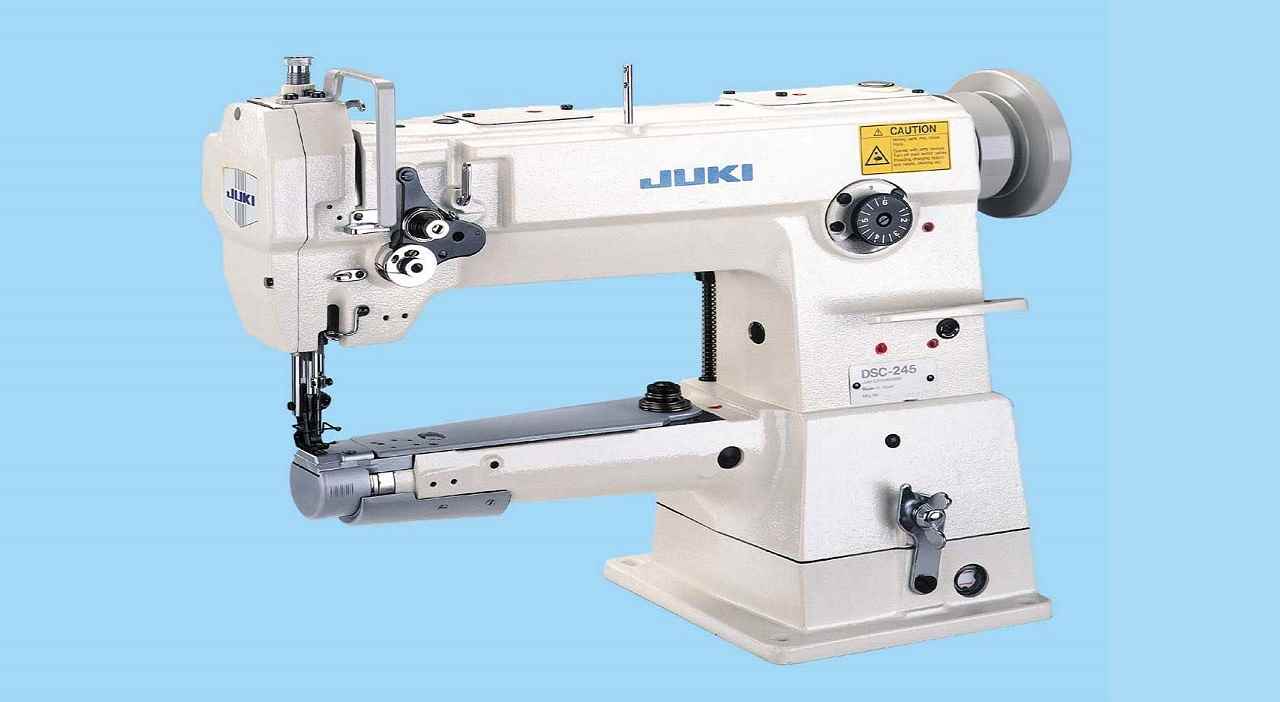

DSC Series

Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine

Features

Consistent seam quality
Excellent for sewing sharp curves
When using the knee lifter, the lift of the presser foot is as high as 15mm (Machine without a thread trimmer)
The horizontal feed is best suited for attaching of piping tape (V type)

Technical Specifications

Model	DSC Series 244, 245, 246
Max. sewing speed	2,200 spm
Max. stitch length	6mm (normal/reverse feed)
Needle bar stroke	36 mm
Lift of the presser foot	By hand: 9mm, By knee: 15mm
Thread take-up	Slide type
Hook	Horizontal-axis full rotary, double-capacity hook
Cylinder-bed diameter	46mm
Distance from the needle to machine arm	264mm
