Apparel

  • Juki LH-3500 Double needle lockstitch machine

"Semi-dry head, 2-needle Lockstitch Machine "

IIGM
Purchase Protection Plan

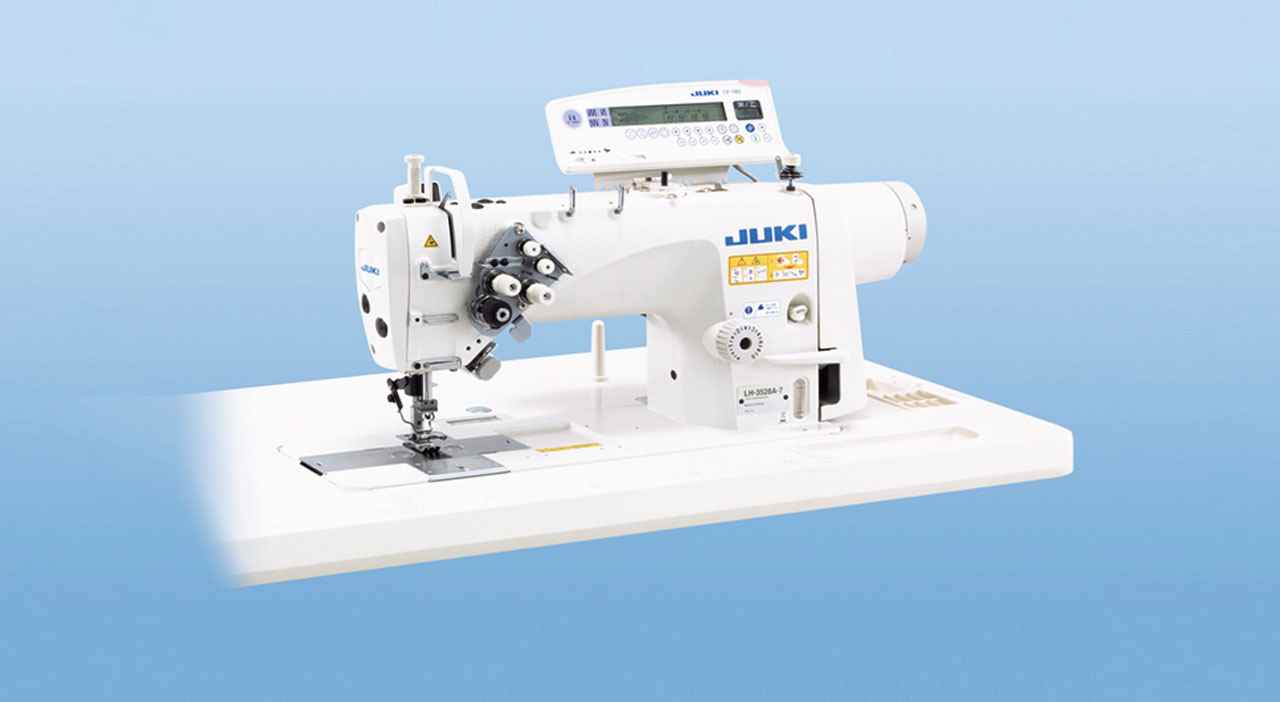

LH-3500 Series

Adoption of the direct-drive mechanism promises energy-saving and increased work ability.

The LH-3500 series works great for professional stitching endeavors due to its accelerated speed and good penetration power. Juki sewing machine prices are comparatively less in India than other countries. It also comes with a warranty of one year for any manufacturing defects.

Double Needle Lock Stitch machine works by using two needles and two bobbins, which results in two adjustable parallel rows of a perfect lockstitch. JUKI, the Japanese industrial sewing machines manufacturer specializes in manufacturing sewing machines for woven and knit fabrics, leather, and heavy-duty garments. They provide a direct drive double needle sewing machine that comes with an automatic thread trimmer. It has a semi-dry head to terminate unnecessary stains that occur due to oil release from the needle bar frame. It has a built-in thread winder in the machine head. It guarantees a high amount of energy saving and enhanced working ability as it has a direct drive mechanism.

Features

  • Material penetrating force increased by 32% in UBT
  • Direct-drive sewing machine with automatic thread trimmer
  • All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle bar part)
  • The semi-dry head sewing machine with organized split needle bars is only available from JUKI.
  • The best-suited thread tension is achieved according to the sewing specifications
  • Wire type and round-hole type needle bar thread guide
  • Material-friendly micro-lifter mechanism
  • Two selectable new-method oiling mechanisms 1. Eco-oil method  2. Clean oil method
  • Changeover between the needle feed and bottom feed is possible.

Technical Specifications

Model Name LH-3528A (FIXED BAR) LH-3568A (SPLIT BAR) LH-3578A (FIXED BAR) LH-3588A (SPLIT BAR)
Application Without organized split needle bar With organized split needle bar
Lubrication Semi-dry / hook section: minute-quantity lubrication (tank system)
Max. sewing speed 3,000sti/min*
Distance from needle to machine arm 120mm (H) x 266mm (W) x 87mm (height of jaw part)
Feed system Changeover between the needle feed and bottom feed Needle-feed
Max. stitch length 4mm 5mm
Thread winder Built-in the machine head
Lift of the presser foot Standard hook: 7mm (by hand), 13mm (by knee)
Oiling method Eco-oil method (circulation type), Clean oil method

Warranty

One year from the date of invoice against any manufacturing defects.
