"For automatically sewing pieces as collar, cuff, pocket etc of a shirt "

IIGM
Purchase Protection Plan

NS-6039

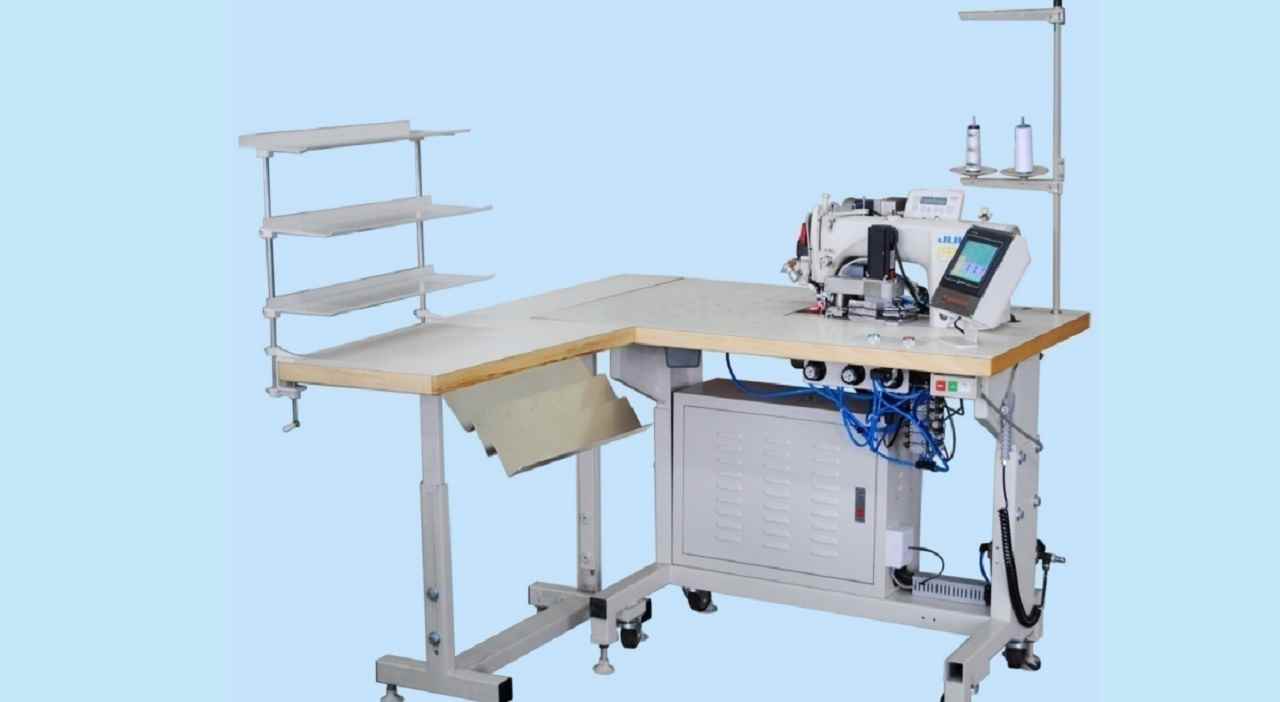

NS-6039-1 & NS-6039-2 are Automatic Pattern Sewers

Features

  • Both equipment are suitable for automatically sewing fabric pieces as collar, cuff, pocket flap etc. of shirt
  • NS-6039-2 is equipped with an additional table for sewing wide fabric pieces such as suit lapel
  • Adopt PLC and user friendly touch screen for easy operation
  • Preset sewing pattern according to different plastic stitch jig to make sure that every cutting piece has the same sewing effect, so as to improve working efficiency and product quality greatly
  • The sewing speed and stitch length can be adjusted to meet different sewing demands
  • Special collar point positioning and automatic overlap sewing and dense sewing to make a smooth round or sharp corner collar
  • Self  R&D core technology simultaneously such as  stitch performs with plastic stitch jig together to get a better  sewing effect
  • Equipped with a fabric trimming cutter to trim fabric edge automatically for efficiency improving
  • The whole sewing is automatic, so it is suitable for greener
  • Customers may select NS-101 or NS-8661additionally for making plastic stitch jig of any pattern to work together with this machine.

Technical Specifications

Model NS-6039-1 NS-6039-2
Power Supply 1PH / 220V / 50Hz
Total Power 0.8
Working table size (inch) 56" x 61" 56" x 70"
Sewing machine to be matched JUKI DDL-9000B-SS
Max. sewing speed 4000
Net weight 136* 140*
Machine size 1440x1560x1560 1440x1780x1560*

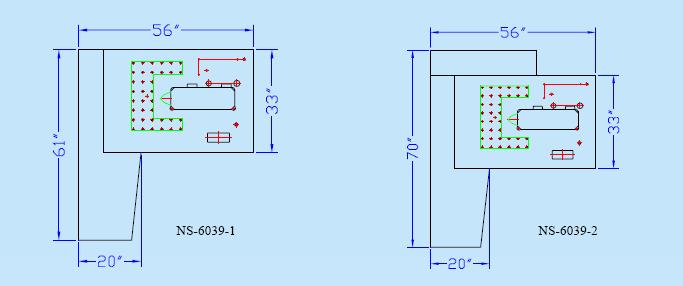

Machine Drawing
