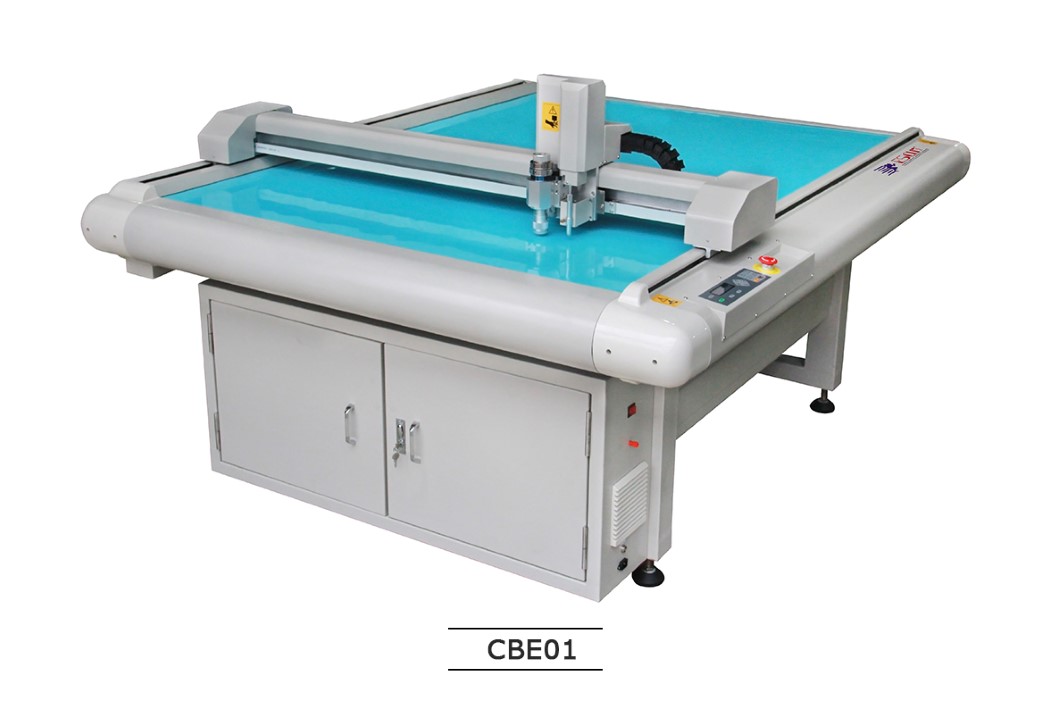

"JWEI CBE01 Series Digital Cutter "

IIGM
Purchase Protection Plan

CBE01

First Choice of Hardboard Cutting

  • Multiplicate tool heads, with powerful functions applied to kinds of materials cutting, has full cutting, half cutting, plotting and manual laser cross cursor positioning function. Optional oscillating cutting tool.
  • Top-rangking platform for structural design, and automatic processing of a variety of materials can be used for small batch production.
  • Ethernet transferring, long distance with multi-computer, also upgrading and maintenance by remote-distance.

Features:

1.Simple and small size with powerful cutting which is specially for thick board.

2.Fast speed Ether Net transferring enable the multi-computer.

3.Operation, upgrading and maintenance by remote distance.

4.Laser point for accuracy locating.

Technical Spec:

Model No.

CBE01-1209

Multi-functional Tool Head

Drag tool head and oscillating cutting tool head optionalwith full cutting, half cutting,

plotting and laser cross sursor positioning

Moving speed

800-1000mm/s

Cutting speed

200-700mm/s(depends on different kinds of material)

Cutting thickness

≤15mm

Material

Kinds of gray board, ivory board, plastic board, composite material,

corrugated board etc.

Tools

Optional a variety of cutting blades, different size and

general gel pens etc

Fixing method

Vacuum suction

Repeated accuracy

≤0.1mm

Resolution

0.025/0.01/0.1 optional

Transmission port

Ethernet port

Volume of Buffer area

1G

Command system

HP-GL

Digital panel

Chinese-English LCD touch screen

Driving system

Imported guiding rail, servo motor,synchronous belt,leading screw

Rated power

5KW

Power supply

AC220V/380V±10%

Effective Cutting Area

1500mm*900 mm

Machine size

2050mm*1700mm*1250mm
