"The reverse switch helps returning the material fed in by mistake "

IIGM
Purchase Protection Plan

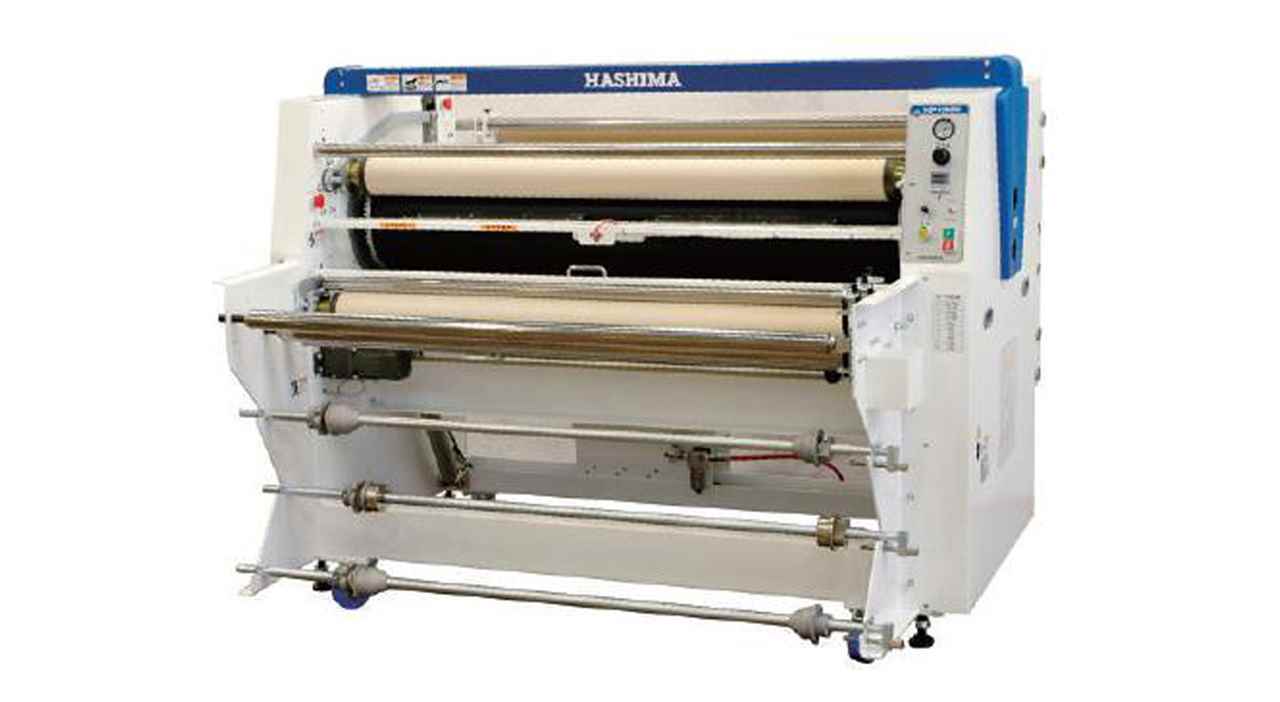

HSP-1300RL,1600RL,2000RL

Lower Feeding type Sublimation Heat Transfer Press Machine

Features

  • The drum type special heater assures uniform temperature balance.
  • Non-contact temperature sensor and non-contact relay control the actual temperature.
  • The temperature is controlled by a digital then-no which is very easy to read so that the actual and established temperature can be recognized at a glance.
  • The speed goes up instantly by a high-speed pedal, which is convenient to start winding.
  • The feeding length of the cloth (material) can be shown on the measuring counter.

Technical Specifications

Model HSP-1300RL HSP-1600RL HSP-2000RL
Power supply 3 Phase
Rated output 11.7KW 12.6KW 15KW
Max. Pressure 5.5kgs/cm2 5kgs/cm2 4kgs/cm2
Pressing method Air
Max. temperature 230°C
Fusing width (mm) 1300 1600 2000
Dimensions

(W) 1960mm

(D) 1635mm

(H) 1706mm

(W) 2265mm

(D) 1635mm

(H) 1706mm

(W) 2700mm

(D) 1635mm

(H) 1706mm

Weight 820 kgs 950 kgs 1250 kgs
Compressor Over 1 HP
