NS-5610-600 & 900

Fusing Machine

Features

Suitable for waist band, front placket, collar, sleeve and cuff fusing and pressing
Apply upper & lower heater and thermostat; temperature is controlled accurately
This machine is equipped with automatic belt balance system and the conveying speed is adjustable
The pressing pressure is adjustable and the collecting table has air cooling device for better fusing effect

Technical Specifications

Model	NS-5610-600	NS-5610-900
Power Supply	3PH/380V/50Hz	3PH/380V/50Hz
Heater Power (kW)	9.6	12
Belt Width (mm)	600	900
Pressure Increasing Mode	By Air Cylinder
Compressed Air Pressure (kgf/cm2)	5	5
Average Fusing Pressure (kgf/cm2)	1	1
Upper Heater (kW)	4.8	6
Lower Heater (kW)	4.8	6
Max. Temp. (C)	200	200
Machine size (mm)	2550x1270x1180	2540x1560x1160

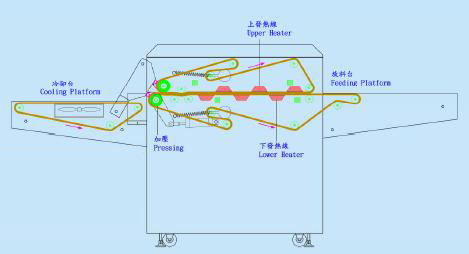

Machine Drawing
