E Line URC series

"Safety of personnel is at maximum level thanks to the insulation of conductors "

IIGM
Purchase Protection Plan

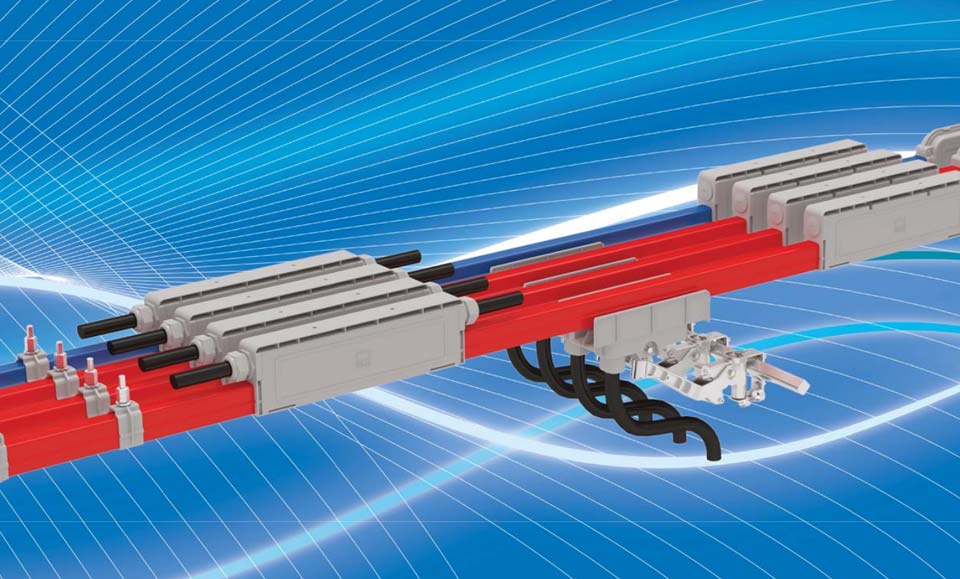

URC (Uni-Rail Conductor) Busbar systems are the systems where each conductor is installed as a separate line and the current reception cars act together with the machine that will use the energy to realize the uninterrupted power reception.

Since the conductors are on separate bodies, E-Line URC busbar systems are the systems that can be smoothly used in interior and exterior environments under heavy duty conditions and that eliminate all the negative aspects of conventional pulley cable systems.

Safety of personnel is at maximum level thanks to the insulation of conductors.

In E-Line URC-A High current series, thanks to the stainless steel bearings, conductor surfaces can be reinforced against wearing and are made long-lasting.

Areas of Usage

  • Harbor, construction and industrial cranes
  • AS/RS storage systems
  • Moving playground systems
  • Moving door and ceiling systems
  • Installation and test lines
  • Monorail systems
  • Elevator systems

URC – C

  • 250A / 400A current ranges
  • Copper busbar conductor
  • PVC exterior insulation
  • Standard length is 4m.
  • URC - C Current Reception Car up to 50A
  • Current reception cars can be shunted

URC – S

  • 90A / 120A / 140A current ranges
  • Galvanized sheet iron conductor
  • PVC exterior insulation,
  • Standard length is 4m.
  • URC - S Current Reception Car up to 50A
  • Current reception cars can be shunted
