E-Line DL group Busbar Systems are used in buildings and industrial plants on lighting and socket circuits where 25A, 32A or 40A Three-phase or Single-phase power is required. 10 / 16A output sockets (with or without cartridge fuse) or 25A output boxes with a cartridge fuse or automatic fuse are specially designed to supply lighting and socket circuit as per their specifications.

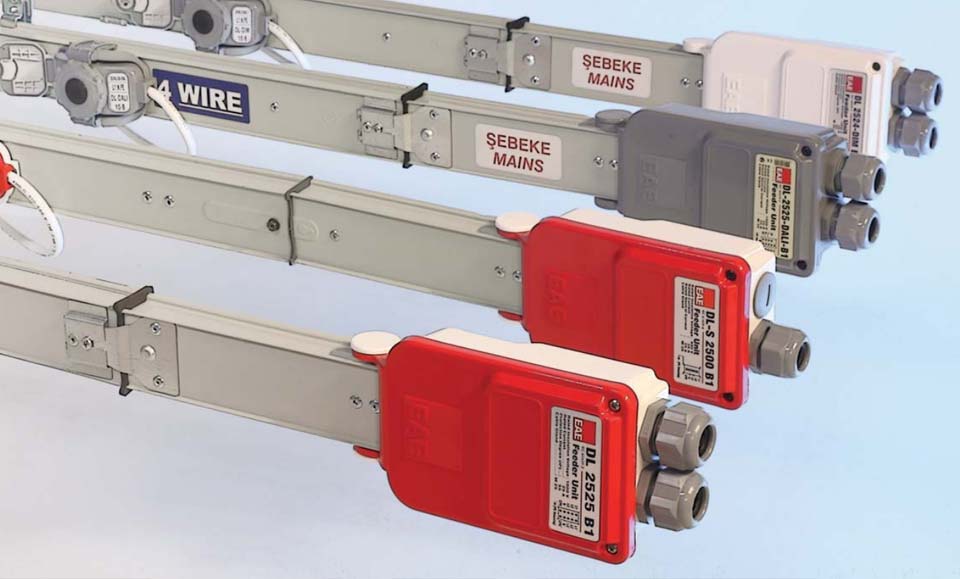

E-Line DL Group Busbar Systems consist of the following 4 sub-product groups according to their intended use
E-Line DL
Double-circuit busbar systems are used in lighting and socket circuits at offices and work places, and in Industrial plants on lighting circuits. (2+2)…(5+5) different conductor combinations are available.
E-Line DL-S
A single-circuit Busbar system has been produced basically as the equivalent of the E-Line KAM lighting Busbar series. It is used in factories and car parking areas for single-circuit lighting supply. Three-phase and Single-phase usage possibility and 2, 3, 4 and 5 conductor options in Single circuit are available
E-Line DL DALI
It is used for both the power supply and also the control line on DALI-controlled lighting circuits in buildings and industrial plants. (4+4) or (5+4) CE (clean earth) conductor options in three-phase applications or (2+4) or (3+4) CE (clean earth) conductor options in single-phase application are available
E-Line DL DIM
It is used in buildings and industrial plants on lighting circuits, for dimming the fixtures which are used with ballast with a corridor function and also on power supplies. Three-phase application is available. 5+4 conductor option
E - Line DL Overview
E-Line DL group Busbar Systems are used in buildings and industrial plants on lighting and socket circuits where 25A, 32A or 40A Three-phase or Single-phase power is required. 10 / 16A output sockets (with or without cartridge fuse) or 25A output boxes with a cartridge fuse or automatic fuse are specially designed to supply lighting and socket circuit as per their specifications.
