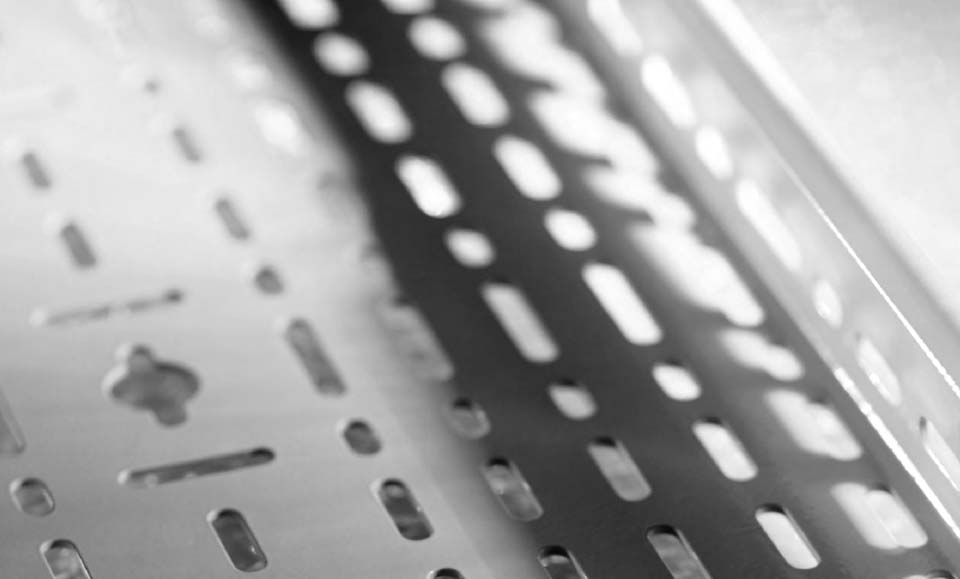

E-Line UKS series Pre-galvanized cable Trays are produced as heavy duty types in accordance with TSE and ISO 10143 standards. They can be manufactured as monoblock up to 6m length since they are produced in the Roll Forming method.
Standard 3m or 1.5m lengths are also available. They are designed as to carry the wiring in the interior areas of plants and buildings.
Technical Features
Their widths may vary as 0.8mm, 1mm or 1.2mm in accordance with the conduit widths and the weight they will carry. Standard length is 3000mm. 6000mm can also be produced upon request. H:40mm or H:60mm channel heights; 50 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600mm channel widths are available.
Applications
- Car Parking Areas
- Construction Sites
- Factories and industrial installations
- Food premises
