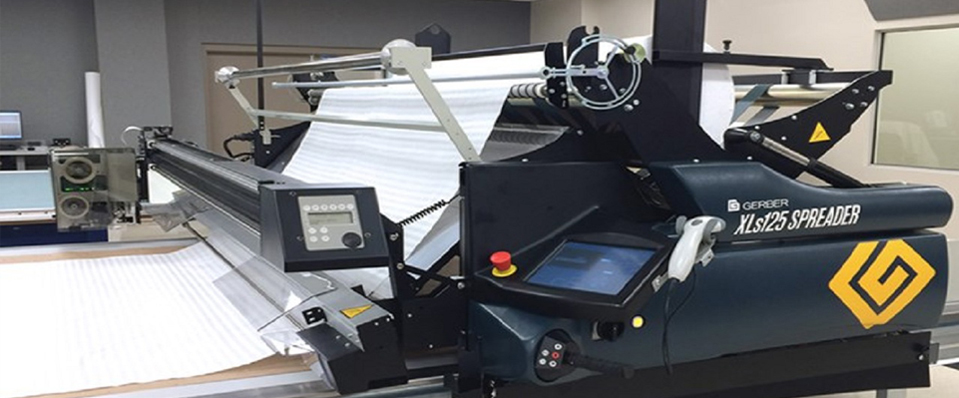

An automated spreading system for apparel production

The GERBERspreader™ XLs is an affordable automated spreading solution that ensures material rolls are spread without tension and the edges are aligned perfectly. Available in 50 kg (110 lb) and 125 kg (276 lb) models, the XLs is ideal for a wide range of material applications.

Features

Optimize material utilization.

The GERBERspreader XLs system accurately aligns fabric edges so users can nest parts closer to the beginning, end and edges of the spread, eliminating end loss and optimizing material utilization.

Choose the flexible solution.

The GERBERspreader XLs system spreads woven or knit materials from either rolls or flat folded packs. Optional end catcher device accommodates face up one way or face-to-face (zigzag) spreading.

Loading and unloading is simple.

The fabric roll cradle feed system tilts automatically for easy material loading and unloading. The GERBERspreader XLs system features an intuitive, icon-driven user interface.

Technical specifications :

  XLs 50 XLs 125
Material width 180,200,240cm (72,78.7,94.5 in) 160,180,200,220 cm(63,72,79,87in)
Roll Weight (maximum) 50kg (110lbs) 125kg(276lbs)
Spread Height(maximum) 40cm(16in) 65cm(26in)
Spreader Speed(maximum per min) 100m (109yds) 100m(109yds)
Loading Height over table top 36cm(14in) 44cm(17in)
Total height over table top 80cm(32in) 82cm(32in)
Table width Machine width + 20cm(+8in) Machine width +20cm(+8in)
Power supply 1x220-240v/3x220-240v/3x380-415v 1x220-240v/3x220-240v/3x380-415v
Main fuse 16Amp 16Amp
