Eastman Straight Knife:629-8

"When people talk about straight knives, they talk about Eastman "

IIGM
Purchase Protection Plan

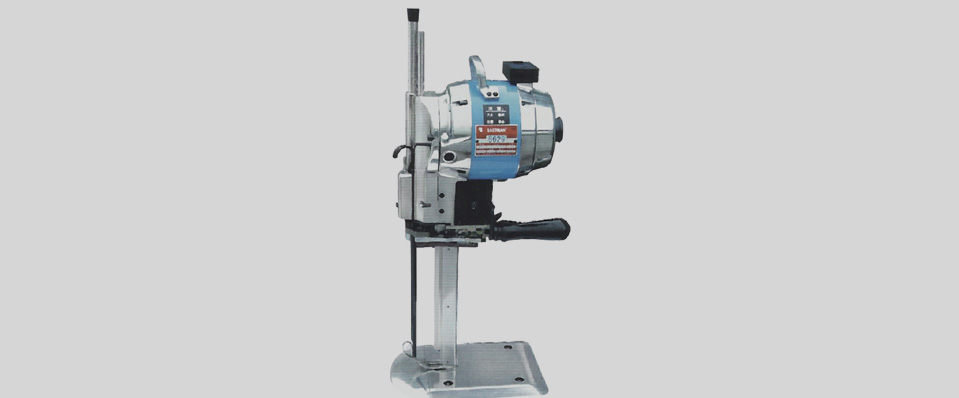

With versatility unmatched by any other straight knife, the 629X Blue Streak II is the obvious choice when one cloth cutting machine is required to perform many tasks. The machine features a low profile, polished, streamlined base plate is designed to reduce friction and distortion in the lay, regardless of the number of plies. It is constructed of superior quality materials to ensure durability and longevity.

Features

Accuracy

Cutting of intricate patterns and tight turns due to the low-profile base plate and narrow silhouette standard.

Continuous, Smooth Running

Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005"(0.0013cm). Simple handling of the machine due to its low center of gravity and the best power-to-gravity weight ratio in the industry. Low maintenance requiring only daily lubricating with the easy-to-use one shot single-reservoir oiling system

Technical Specifications

  Blue Streak II ® Technical Specifications
Motors 110V, 1ph, 50/60Hz // 220V, 1ph or 3ph, 50/60Hz // 380V, 3ph, 50Hz - Standard: Single Speed - Optional: Dual Speed - Note: Variable Speed Motor is only available for the Brute - Note: 380V, 3ph, 50Hz is not available for Brute Variable Speed
Horsepower .65hp, 1ph - .93hp, 3ph
Weight 34 lbs. (15.4kg)
Blades Standard: Carbon Steel - Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip
Belts Standard: Medium Grit, Optional: Fine, Coarse, Rough
Options Micro Fog, Plastic Master, Auto Stop - Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in., not available for Brute VS model
Stroke Sizes 1.125 in. (2.86cm) // 1.25 in. (3.18cm) // 1.5 in. (3.81cm) // 1.75 in. (4.45cm)
Blade Size 5 in. (12.7cm), 6 in (15.2 cm), 7 in. (17.7 cm), 8 in. (20.3 cm), 9 in. (22.8 cm), 10 in. (25.4 cm), 11.5 in. (29.2 cm), 13 in. (33 cm)
Cutting Capacity 3.5 in (8.9cm), 4.5 in. (11.4cm), 5.5 in (13.9cm), 6.5 in (16.5cm), 7.5 in. (19.1cm), 8.5 in. (21.5cm), 10 in. (25.4cm), 11.5 in. (29.2cm)

Note: The Eastman 629X Blue Streak II is available in eight sizes, four strokes, and a multitude of electrical specifications.
