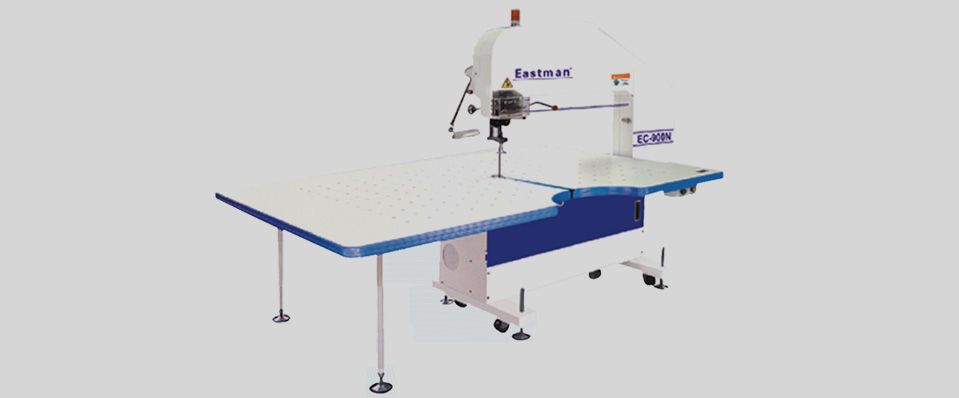

Eastman Brand Knife:EC700N

"Best in the business  "

IIGM
Purchase Protection Plan

The following features make this Eastman band knife stand out from the rest:

  • Variable speed provided by unique inverter control adapts cutting to every type of materiaI.
  • Speed can easily be changed by touch panel.
  • Digital read-out of knife speed, easily adjustable to suit various cutting requirements.
  • Touch panel with digital display is built into work-table for maximum ease of operation.
  • Very low vibration and noise levels achieved by compact, light design of machine and hi-tech engineering.
  • New tension control mechanism assures proper knife tension.
  • Ball nozzle type airflow work table is standard equipment.
  • Casters make machines easily movable.
  • Inverter circuit has self-detector which shows display error message when overloaded.

Technical Specifications

  • Variable speed with inverter motor
  • Ball nozzle airflow work table
  • Automatic Sharpening device
  • Knife cooling silicon pad
  • Knife speed digital display

 Specs EC-700N EC-900N
CUTTING CAPACITY 180mm 180mm
TABLE SIZE 1500*1800mm 1500*2100mm
TABLE HEIGHT 720-790mm 720-790mm
ARM SIZE 700mm 900mm
SPEED CONTROL 570m/min-1140m/min 570m/min-1140m/min
MACHINE WEIGHT 280kgs 300kgs
KNIFTE SIZE 0.45*10*3500mm 0.45*10*3960mm
MOTOR 220V175W 220V750W
BLOWER MOTOR 220V180W 220V180W
DIMENSIONSmm 1640(L)X940(W)X1980(H) 2210(L)X940(W)X1980(H)
